Description

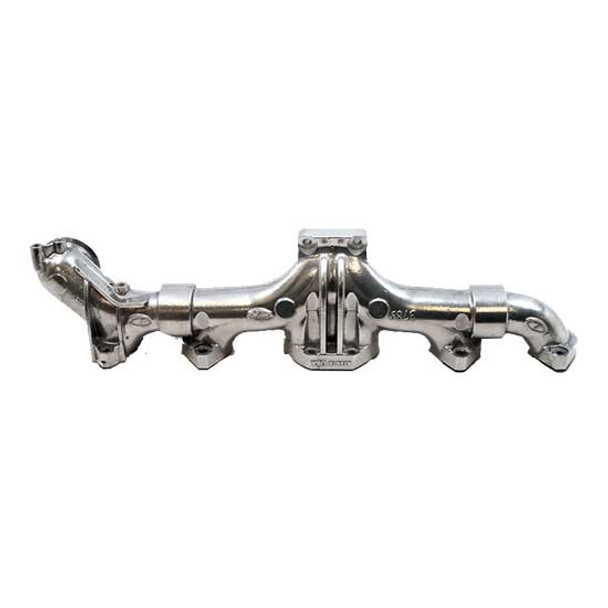

Exhaust Manifold Fits Cummins
Are you looking for an exhaust manifold that is fine tuned to improve the performance of your Cummins ISX engine? 4 State Trucks is proud to offer this Ceramic Coated Exhaust Manifold by Bully Dog that significantly improves horsepower and fuel economy. It has a high flowing design that provides a quicker turbo spool and a higher power output then the OEM part. Upgrading to this manifold can greatly reduce exhaust gas temperatures 80 to 100 degrees and provide up to a 30 horsepower increase. The manifold is engineered with thick ceramic coated alloy walls with high tolerant press fit connections to prevent leaks, cracks and warping. It is an aftermarket replacement part for OE number 3682959 and is backed by a two year warranty.
* High Quality Ceramic-Coated Exhaust Manifold* 80 to 100 degree reduced exhaust gas temperatures (EGTs)
* 20-30 HP Increase
* Better Design, Pressure Fitted To Eliminate Leaks
* High Quality Material To Eliminate Cracks
* Ported To Eliminate Any Flow Interference
* Ceramic Coated Cooling EGT By 100 Degrees
* Improves Fuel Mileage
* Designed As A Direct Bolt-On OEM Replacement
* Made In The USA
* Sold Individually
* Warranty On Exhaust Manifold Against Defects In Workmanship & Material From Date Of Purchase
***High Quality Aftermarket Replacement Part (Not OEM)***
* Replaces OE Number 3682959
** This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order **
Fitment
* Fits Cummins ISX EGR 2003.5 thru 2007
Additional Information
Truck Class: |
Heavy Duty |
Location: |
Made In USA |
Material Options: |
Steel |
Make: |
Kenworth |
Make: |
International |
Make: |
Freightliner |
Make: |
Volvo |
Make: |
Peterbilt |
Product Type: |
Engine Parts |
1 Review
-
Ceramic-Coated Exhaust Manifold Fits Cummins ISX - Replaces 3682959
Bolted directly up to the 06 isx 475 I was working on. Egr hooked right up, turbo bolted down nicely, and manifold bolts all went in very centered to their holes. However, my turbo placement seems to have been further away from the truck head anywhere from a half inch to 3/4 of an inch. I had to stretch my turbo oil drain line to get it to fit a d I had to make a hydraulic line for the turbo oil feed. Everything else fit perfectly, EGR valve, backpressure sense tube, coolant lines, exhaust outlet (down pipe). For the money difference between oem and this manifold, I honestly can't complain about making my own oil line. I had all parts and tools in house to do it in a matter of five minutes. I would definitely encourage you to use this manifold. So far, a month later, I am satisfied with the quality and performance of this manifold. The OEM warped, breaking two manifold bolts on number one and cracking the bolt on number six, which I broke on disassembly (typical of any Cummins...1,4, and 6) I also used the stainless reinforced graphite gaskets, and they seal and fit perfectly. I would recommend them to anyone with a pitted or corroded head surface. They will definitely seal better than the oe stainless type
