Description

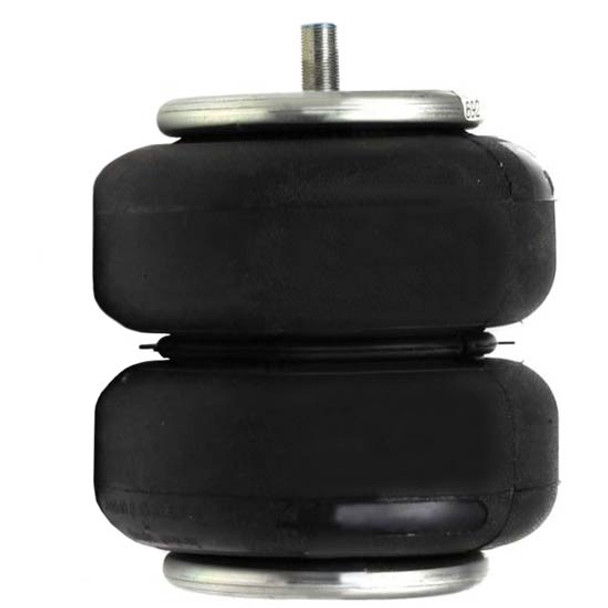

Trailer Suspension Air Bag W01-358-6927 Replacement
* High Quality Air Spring* Double Convoluted Air Spring For Reyco Air Ride
* Air Bag Specifications:
- Load at 80 PSI 2440 LBS
- Load at 100 PSI 3050 LBS
- Design Height 10 Inches
- Top Plate Hole, Stud Qty 1
- Top Plate Dia. 6.31 Inches
- Top Plate C To C Dia. 3.50 Inches
- Bottom Plate Hole, Stud Qty 1
- Bottom Plate Dia. 6.31 Inches
- Bottom Plate Alignment Parallel
- Without Bumper
- Without Bracket
- Min. Height 3.1 Inches
- Max. Height 12.8 Inches
- Max. Dia. 10.3 Inches
* Sold Individually
* Warranty On Air Bags Against Defects In Workmanship & Material From Date Of Purchase
*** High Quality Aftermarket Replacement Part (Not OEM)***
* Replaces OE Numbers: 12906-01, 12906-02, 1685176C1, 2B9-218, 4453, AS218-6927, FD200-25-453, SC2072, W01-358-6927
** This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order **
Additional Information
Rating: |
100 PSI |
Height Options: |
10 Inch |
Truck Class: |
Heavy Duty |
Make: |
Trailer |
Product Type: |
Frame & Chassis |
